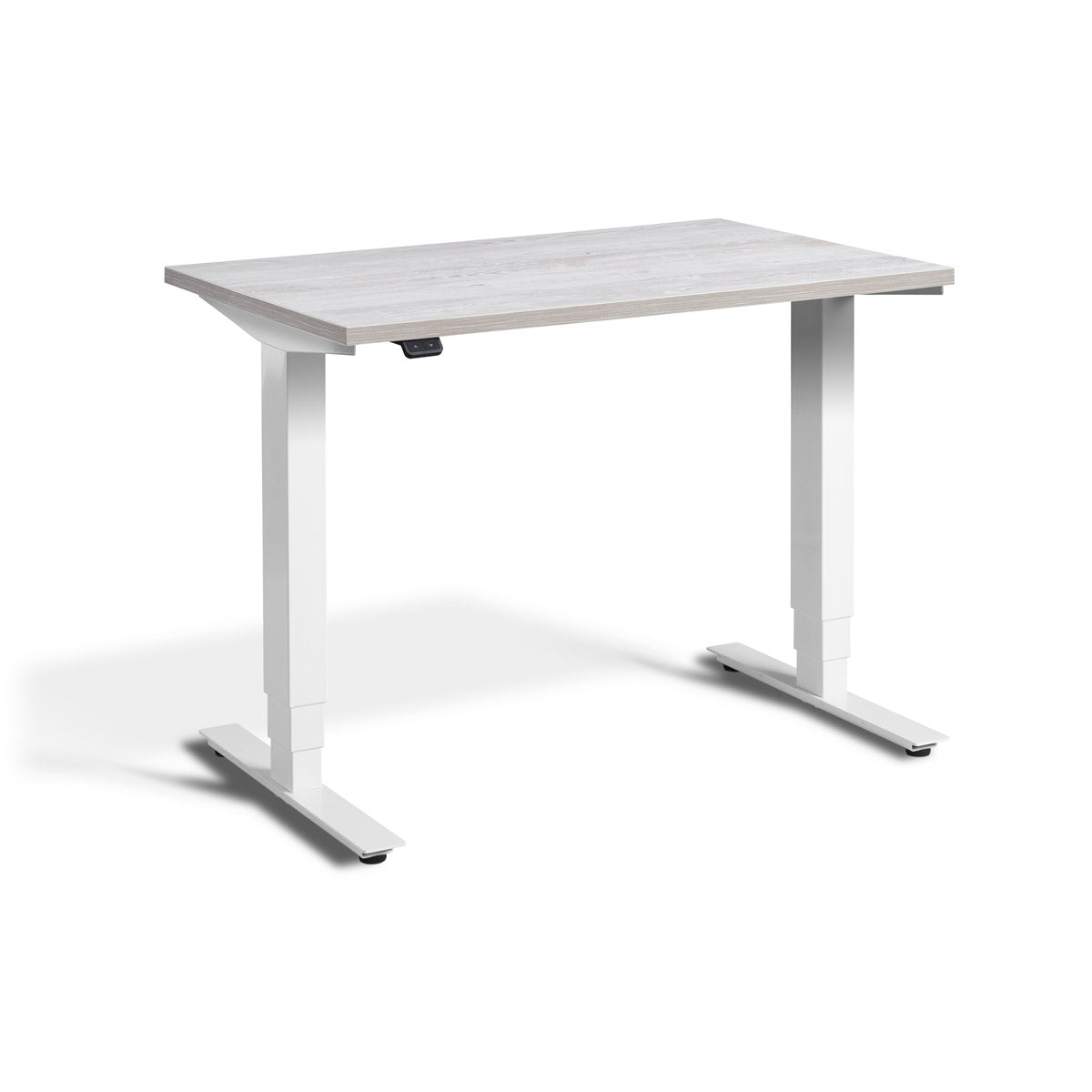

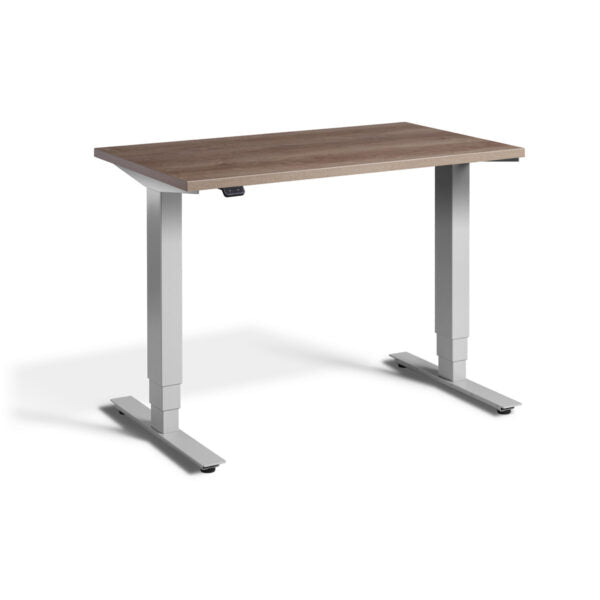

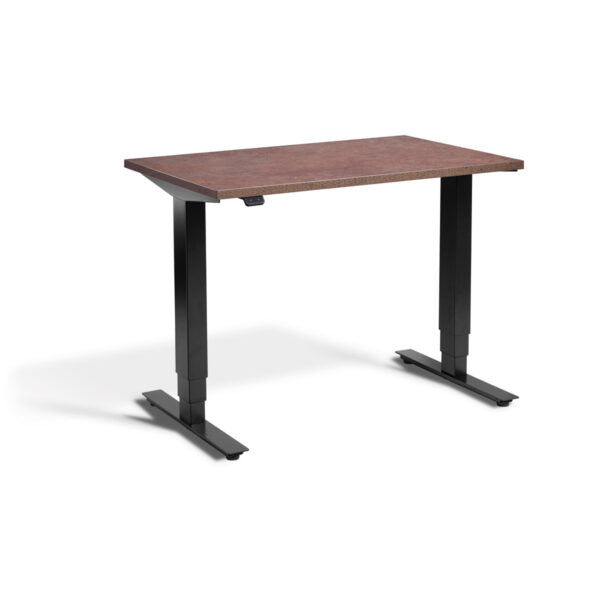

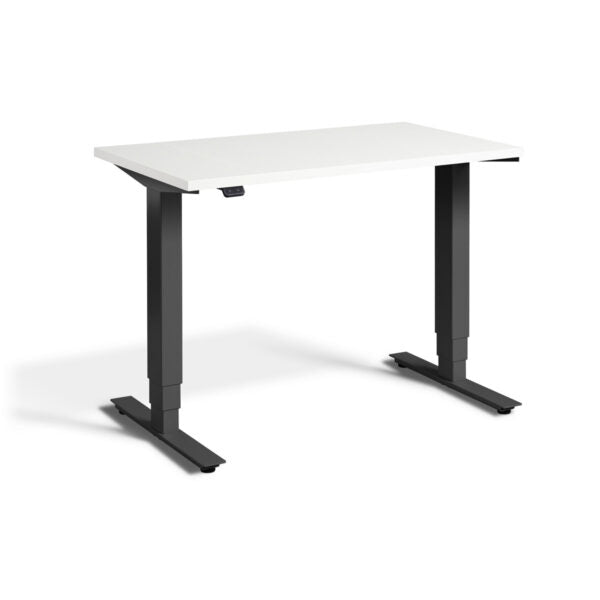

Mini Dual Motor Desk (Height Adjustable 62.5-128.5cm)
SKU: LAV-1000600
*Please note: If you're located in the Scottish Highlands or have any further questions about our products please contact us on 0808 196 8822
Mini Dual Motor Desk (Height Adjustable 62.5-128.5cm)
The powerful space-saving compact standing desk.
Built with the same durable motor system as our larger desks, the Mini desk’s compact footprint allows it to fit in to the tightest of spaces. Available from stock in four frame colours and 18 décor combinations.
The home working and hot-desk solution.
Key Features
Dual Motor Desk
Height Range: 625-1285mm
Load Capacity: 120kg
Speed: 40mm Per Second
Product Specification
Frame
| Frame Width | 950mm |
| Height Range (Inc. 25mm Top) | 625 – 1285mm (± 5mm) |
| Stroke | 660mm |
| Side Bracket Depth | 540mm |
| Foot Depth | 590mm |
| Max Even Load Capacity | 120kg |
| Total Frame Weight | 25kg |
| Operational Life | 10,000 cycles at full rated load |
| Voltage | 230V AC Input, 24V DC operation |
| Operational Speed | 40mm per second |
| Standby Power | <0.3W |
| Max Operational Power | 300W |
| Programmable Min/Max Height | Yes |
| Duty Cycle | 10% – 2mins on, 18mins off |
| Noise Level | <42dB |
| Anti-Collision | Inbuilt overload protection Inbuilt temperature protection High sensitivity upgrade available |
| Compliance | CE Conformity Machine Directive 2006/42/EC EMC Directive 2014/30EU Low Voltage Directive 2014/35/EC REACH, WEEE and RoHS 3 2015/863 EN 527-1:2011 Type A, EN 527-2:2016 ISO 21016 |
Desktop
| Material | 25mm MFC |
| Edging | 2mm ABS |
| Compliance | FSC Certified |
| Stock Sizes | 1000 x 600mm |
Packaging
| Frame Package Size | 840 x 380 x 120mm x 1 1200 x 170 x 130mm x 1 |
| Frame Package Weight | 27kg (total) |
| Frame Package Quantity | 2 |
| Top Package Size | 1100 x 700 x 30mm |
| Top Package Weight | 12kg |
| Top Package Quantity | 1 |
Installation
| Estimated Build Time (per compact standing desk) | 20-30 mins |
| Suitable for self-assembly | Yes |
